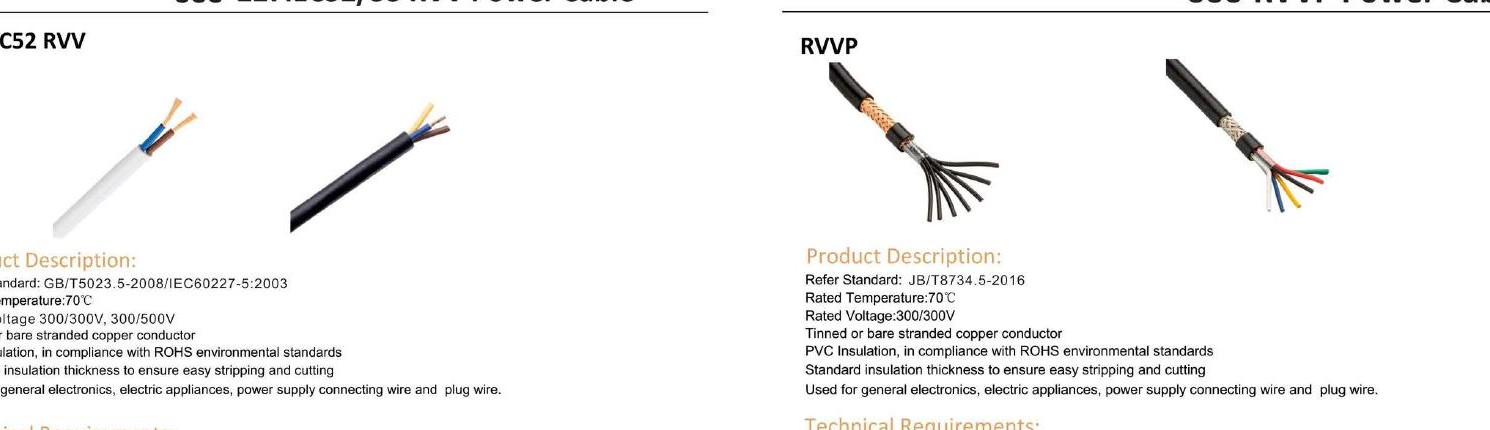

RVVP Power Cable
- Type
- RVVP
- Screen
- Braided copper
- IEC 60227-5
- GB/T 5023
- RoHS
Typical useGeneral electronics, electrical appliances, power supply connecting wire and plug wire.
RVV / RVVP Power Cable specification
Shared across the range. The values above are what set this variant apart.
- Variants
- RVVP, H03VV-F 227IEC52 and H05VV-F 227IEC53 RVV
- Referenced standards
- GB/T 5023.5-2008 / IEC 60227-5:2003 (RVV), JB/T 8734.5-2016 (RVVP)
- Rated voltage
- 300/300 V and 300/500 V; BV to 450/750 V
- Rated temperature
- 70 C
- Conductor
- Multi-strand soft bare or tinned copper (JIS C3406 / JIS C3102)
- Insulation / jacket
- PVC, RoHS compliant
- Screen (RVVP)
- Braided copper
Compare with the rest of the range
Same specification, different build.
